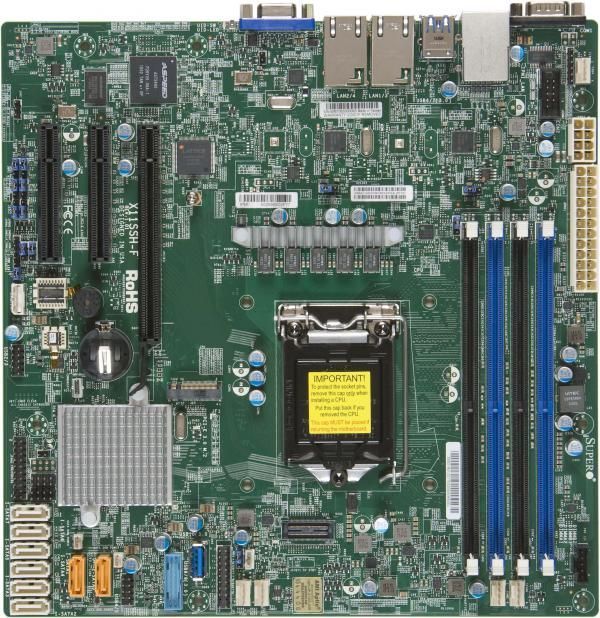

The Supermicro X11SSH-F is a high-performance motherboard designed for Single Socket H4 (LGA 1151), supporting Intel Xeon processor E3-1200 v6/v5, Intel 7th/6th Gen. Core? i3 series, Intel Celeron, and Intel Pentium processors. It features the Intel C236 chipset with support for Intel VHD when paired with selected CPUs. The motherboard supports up to 64GB of Unbuffered ECC UDIMM DDR4 memory at 2400MHz across 4 DIMM slots.

For expansion, it includes 1 PCIe 3.0 x8 (in x16), 1 PCIe 3.0 x8, and 1 PCIe 3.0 x4 (in x8) slots, along with an M.2 NGFF conNECtor (PCIe 3.0 x2, 2280 form factor, M-Key). Storage options include 8 SATA3 (6Gbps) ports via the C236 chipset, supporting RAID 0, 1, 5, and 10 configurations. Networking is handled by Dual GbE LAN with Intel i210-AT controllers.

I/O features include 1 VGA port, 2 COM ports, and a TPM header. USB conNECtivity consists of 5 USB 3.0 ports (2 rear, 2 via headers, 1 Type A) and 6 USB 2.0 ports (2 rear, 4 via headers). This motherboard is ideal for enterprise and workstation applications requiring reliable performance and extensive conNECtivity.
