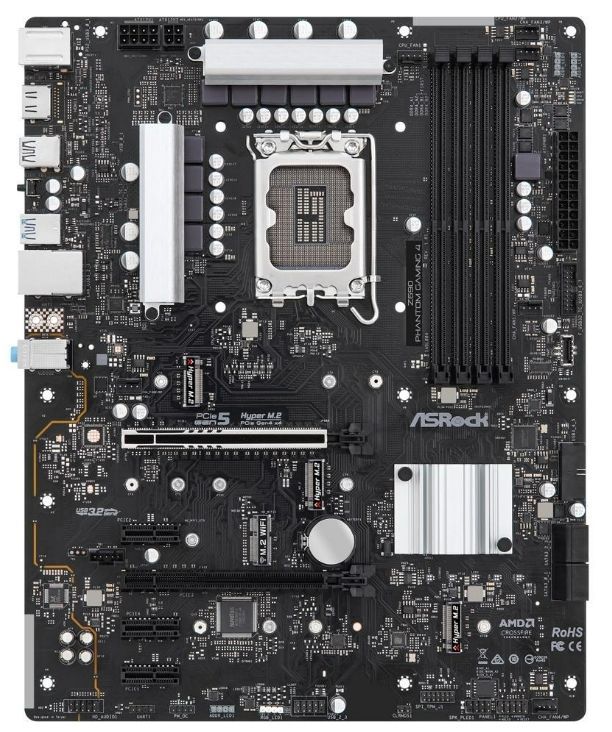

The ASRock Z690 Phantom Gaming 4 is an Intel Z690 (LGA1700) ATX motherboard designed for 12th/13th Gen Intel Core processors. It features a 14+1+1 phase power design with 50A Dr.MOS for stable power delivery, supporting Dual Channel DDR4 memory up to 3200MHz (OC) across 4 DIMM slots with a maximum capacity of 128GB. The board provides one PCIe 5.0 x16 slot with steel armor reinforcement, plus three PCIe 4.0 x1 slots and one PCIe 3.0 x16 slot for expansion. Storage options include three M.2 slots (one PCIe Gen4x4 and two PCIe Gen3x4) and six SATA3 6Gbps ports supporting RAID 0/1/5/10. Networking features 2.5Gbps LAN and WiFi 6E (802.11ax) with Bluetooth 5.2. Graphics outputs include HDMI 2.1 and DisplayPort 1.4 supporting 4K resolution. Additional highlights include USB 3.2 Gen2x2 Type-C (20Gbps), Nahimic audio with high-quality audio capacitors, BIOS Flashback button, and Phantom Gaming RGB lighting with addressable and non-addressable headers. The motherboard also features reinforced PCIe slots, pre-mounted I/O shield, and support for ASRock Polychrome SYNC.
