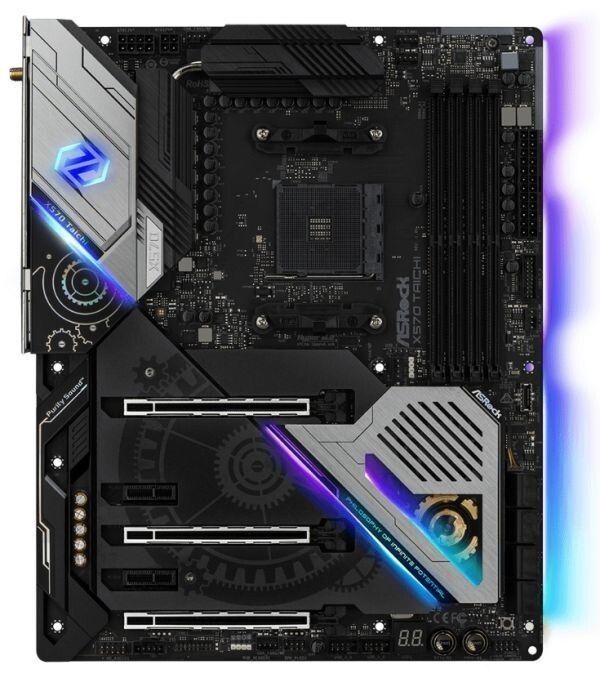

The ASRock X570 TAICHI is an AMD X570 (AM4) ATX motherboard designed for 2nd and 3rd Gen AMD Ryzen processors. It features a premium 14-phase power design with 60A power chokes for superior overclocking capability, supporting Dual Channel DDR4 memory up to 4666MHz+(OC) across 4 DIMM slots with a maximum capacity of 128GB. The board provides 3 PCIe 4.0 x16 slots (steel slot armor on primary slot) and 2 PCIe 4.0 x1 slots for expansion. Storage options include 8 SATA3 6Gbps ports and 3 Ultra M.2 slots (PCIe 4.0 x4) with heatsinks for high-speed NVMe SSDs. Networking features dual Intel Gigabit LAN (I211-AT + I211-AT) and Intel WiFi 6 802.11ax (2.4Gbps) with Bluetooth 5.1. The motherboard offers comprehensive conNECtivity with rear USB 3.2 Gen2 Type-A and Type-C ports, plus front panel USB 3.2 Gen1 Type-C header. Audio is powered by the premium Realtek ALC1220 codec with 120dB SNR DAC, supporting 7.1-channel HD audio with Nichicon audio caps. Additional features include RGB LED headers, addressable RGB headers, BIOS Flashback button, clear CMOS button, and reinforced PCIe slots. The distinctive TAICHI design features a gear-inspired heatsink and customizable RGB lighting effects.
